Proposals, Tasks and Drifts

Work in Trama is made of three kinds of card. The Board shows them (see The Board and the History); what each one means, and who decides, is below.

  1. Cards to decide
  2. Add Work Item starts a design
  3. Active: Tasks to run
  4. Done: finished Tasks

Proposal

A Proposal is a change to the Model and its Requirements that the agent suggests. It has no effect until you approve it as a whole.

  • While the agent writes it, a Proposal is a Draft. You cannot decide on it yet, and the Board shows only its ghost.
  • When the agent hands it over, the Proposal is open and waits in the Backlog for your decision: Approve, Reject, or, from the arrow beside Reject, Rework with feedback….
  • An ordinary change carries the Tasks that build it. Approving the Proposal creates them, in To do, in one step.
  • A Proposal can be written on top of earlier open Proposals and then can only be approved after them.
  • If the Model changes under an open Proposal, because another one was approved first, the Proposal becomes stale. Trama can refine it on the current Model (see Refine stale Proposals).

Other kinds of Proposal follow the same rules: an import describes existing code, a setup is the first Model of a project started from scratch, a resolution gathers your decisions on Drifts, and a handoff carries GitHub issues for your team.

Task

A Task is a unit of work for the agent that you can see and ask the agent to run. A Task that changes the System’s behaviour points at the Model elements it concerns. A Technical Task changes none, for example a refactor or a dependency upgrade, and points at none.

A Task is in To do, In progress or Done. The Board has no way to move a Task: the agent moves it as it works. While the agent works on a Task, the card has an animated border and the dot says Agent working.

A Task is blocked when an open Drift concerns the same thing, or when it waits for the Task that fixes its Drift. The agent cannot start a blocked Task. See Run Tasks.

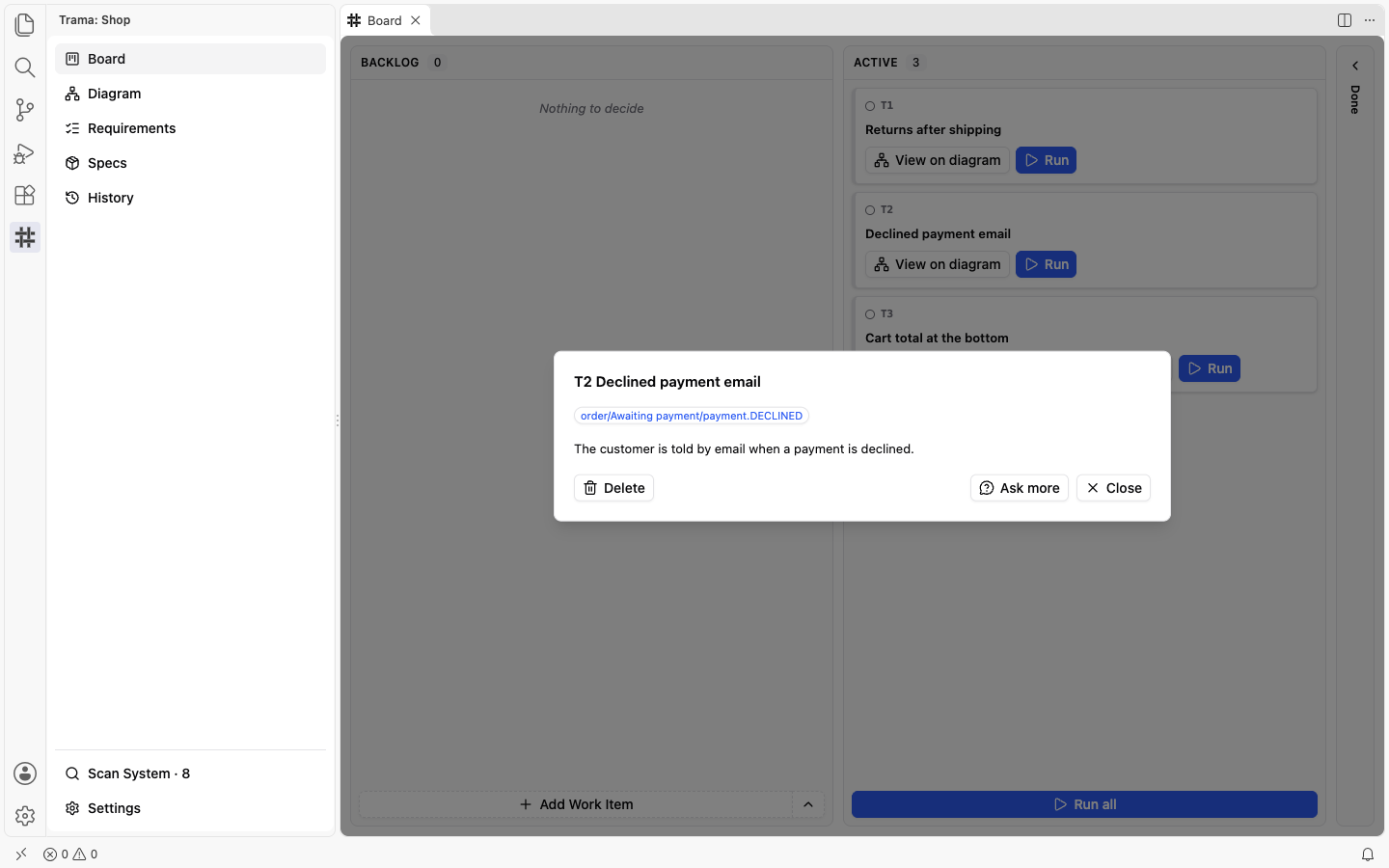

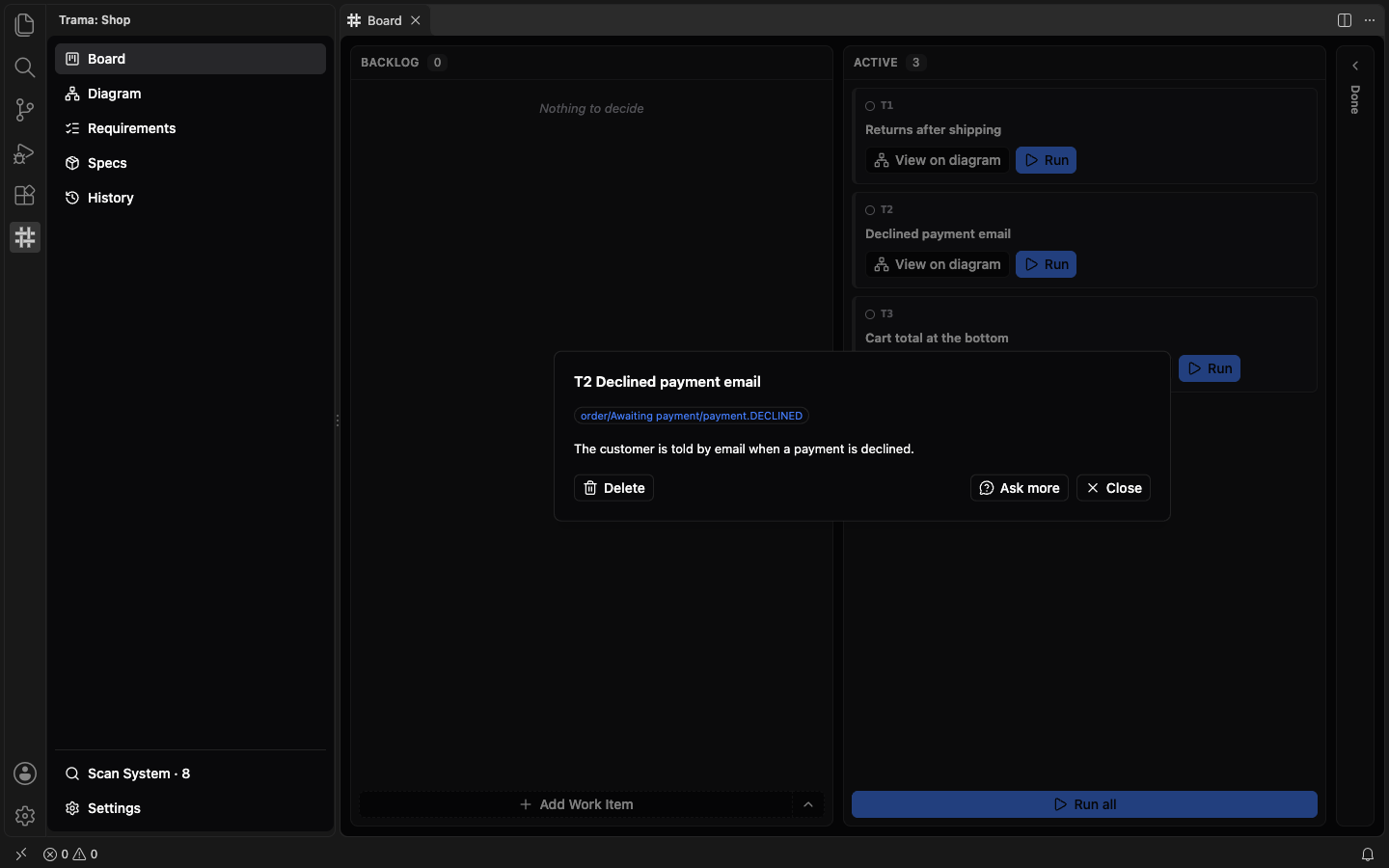

  1. References
  2. Delete removes the Task
  3. Ask more asks the agent

Drift

A Drift is a difference between the code and the Model, large enough to change the Diagram, or code that contradicts a Requirement. Only you decide on it. A Drift states two sides, written to be read at a glance:

  • What happens: what the code does;
  • What should happen: what the Model or the Requirement says.
  1. Model element
  2. What happens
  3. Should happen

It may add Where in the code the difference was seen, and offers two to five Fix options for the code, the first one the agent recommends. You always keep one of the two sides: keeping what should happen has the code fixed, with the Fix option you choose and an optional note; keeping what happens leaves the Model to match the code through a Proposal. See Resolve Drifts.

An open Drift blocks the Task the agent was working on when it found it, and every unfinished Task that concerns the same thing.

Ghosts

When the agent is preparing a card, Trama shows a ghost of it: a dashed, translucent skeleton in the column the card will land in, with its kind (Proposal, Task, Drift), its title and a line for the phase: Preparing, Writing, or Waiting for your answers. A line under it shows the agent’s latest note. Click a ghost to read all the notes and how long the agent has been working.

What the agent does without a card to deliver, such as a scan, an import or a comparison, shows as a ghost in the editor’s status bar, with a spinner and the title, for example Scanning System +2. Click it to open the details.

Short numbers and IDs

Every live Proposal, Task and Drift has a short number, P3, T3 or D3, to read and quote it at a glance. It is local to the working copy and is freed when the card closes. The permanent eight-character ID is what files and commands use. The panel shows one or the other, never both, and its tooltip says which.

The decisions are yours

The agent never approves, rejects or discards a Proposal, resolves a Drift or deletes a Task by itself. It stops and says the decision is yours, on the Board, unless you ask it explicitly, in the conversation, to do that one thing.
