Import from code

Import is for a project that already has its code. An agent describes it, as it is, through Proposals for the Model and its evident Requirements. It does not judge or correct the code: what the documentation contradicts, or what the code seems to get wrong, is recorded as a doubt for you to read.

Choose Import from Code

In the Path step of the setup wizard, choose Import from Code and press Next; in a project whose Model is empty, the Import from Code button of the Diagram does the same (see Put Trama in a project).

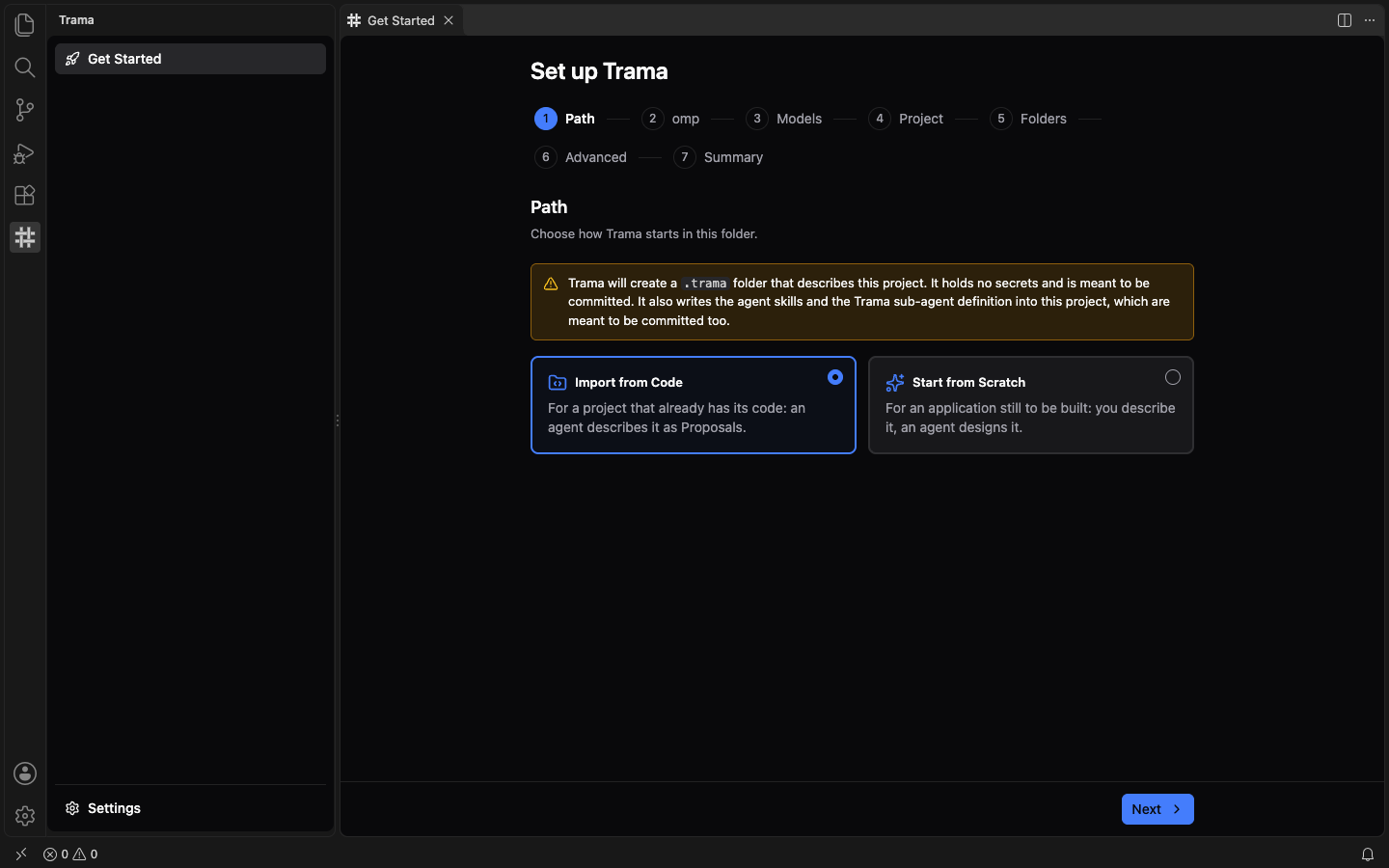

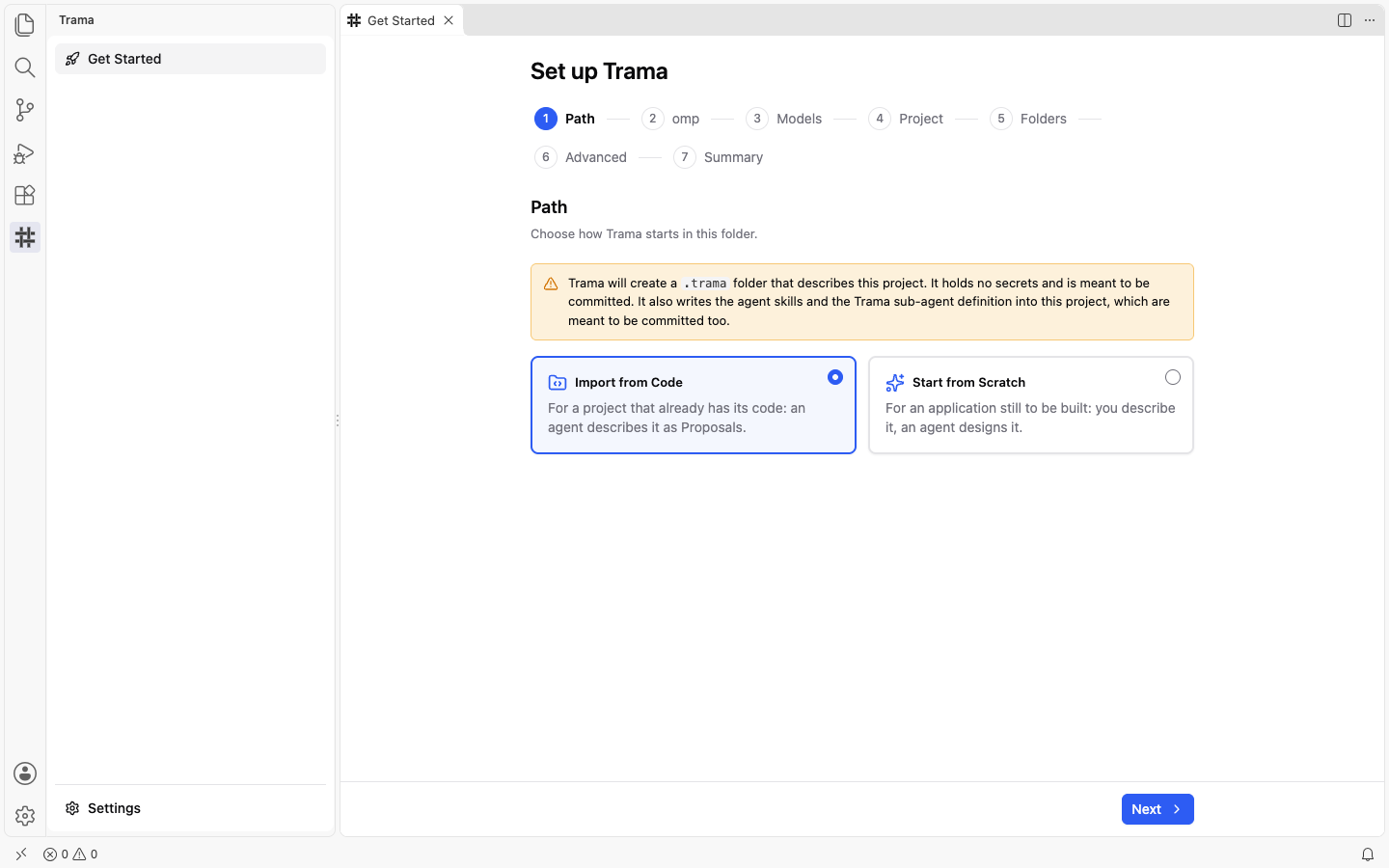

The Path step of the Set up Trama wizard with the Import from Code card chosen, the Start from Scratch card not chosen, and the Next button enabled at the bottom right.

Leave out what the agent should not read

The Folders step lists the folders of the project. Uncheck the ones the agent should not import, such as vendored code or build output.

The Folders step of the wizard listing src and README.md with checked boxes under the line Everything is included, and Back and Next at the bottom.

Confirm and start

The Summary shows Import from Code in the Path card. Press Set up Trama: the agent starts reading the code with the Analysis model.

The Summary step of the wizard with the Path card reading Import from Code, the omp and Models cards below, and the Set up Trama button at the bottom right.

Follow the import

An Import conversation opens in omp Chat, and the status bar shows Importing from code while the agent works.

The empty Board of the new project with an Import conversation open in omp Chat, where the agent says the repository is an online shop in TypeScript, and Importing from code in the status bar.

Review the Proposals

The import arrives as several Proposals, one after the other. The first, Import: System and Actors, describes the System and its Actors and writes the Specs from what the repository declares; then one Proposal for each Feature, with its Machines and States and the Requirements that are evident from the code.

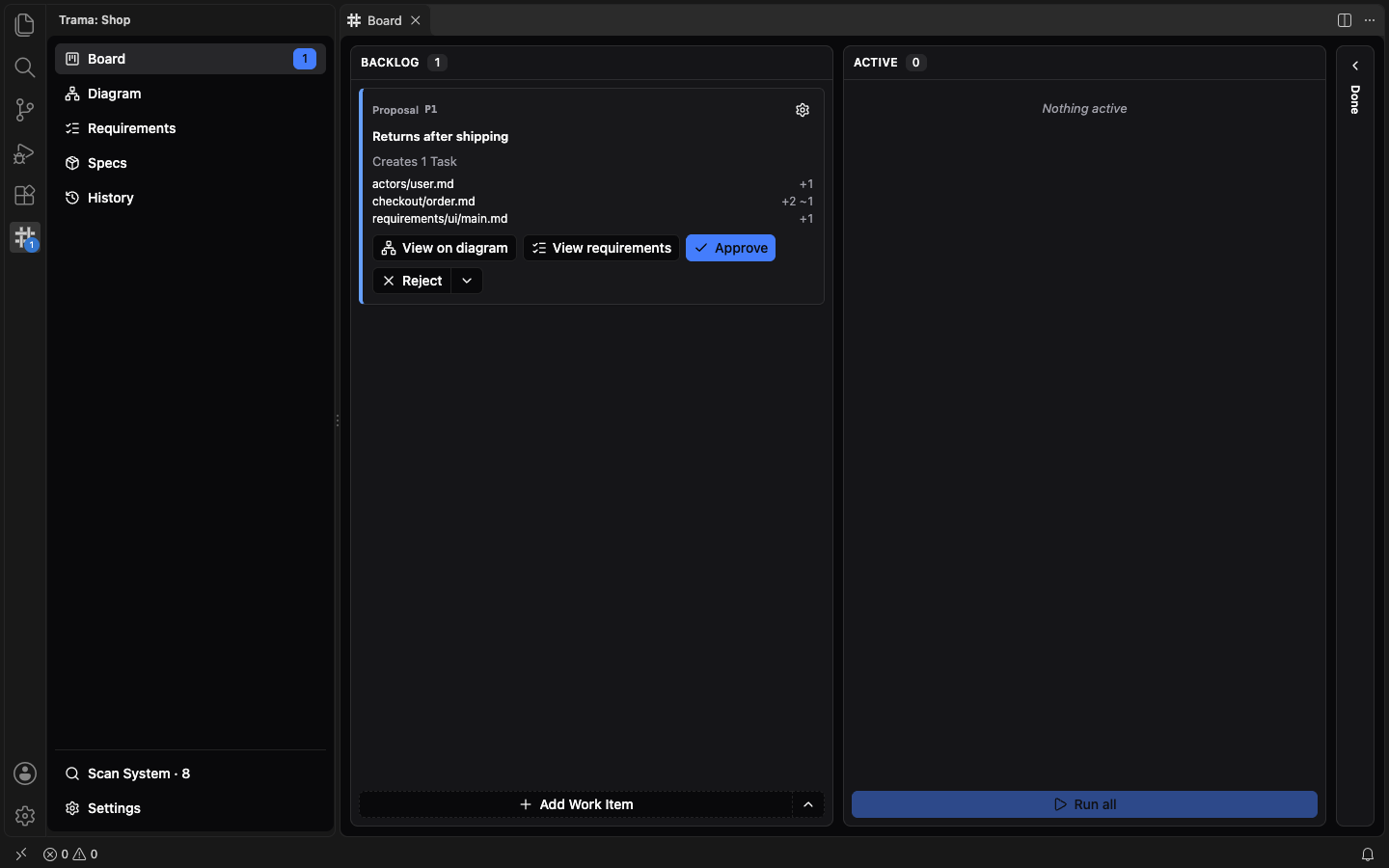

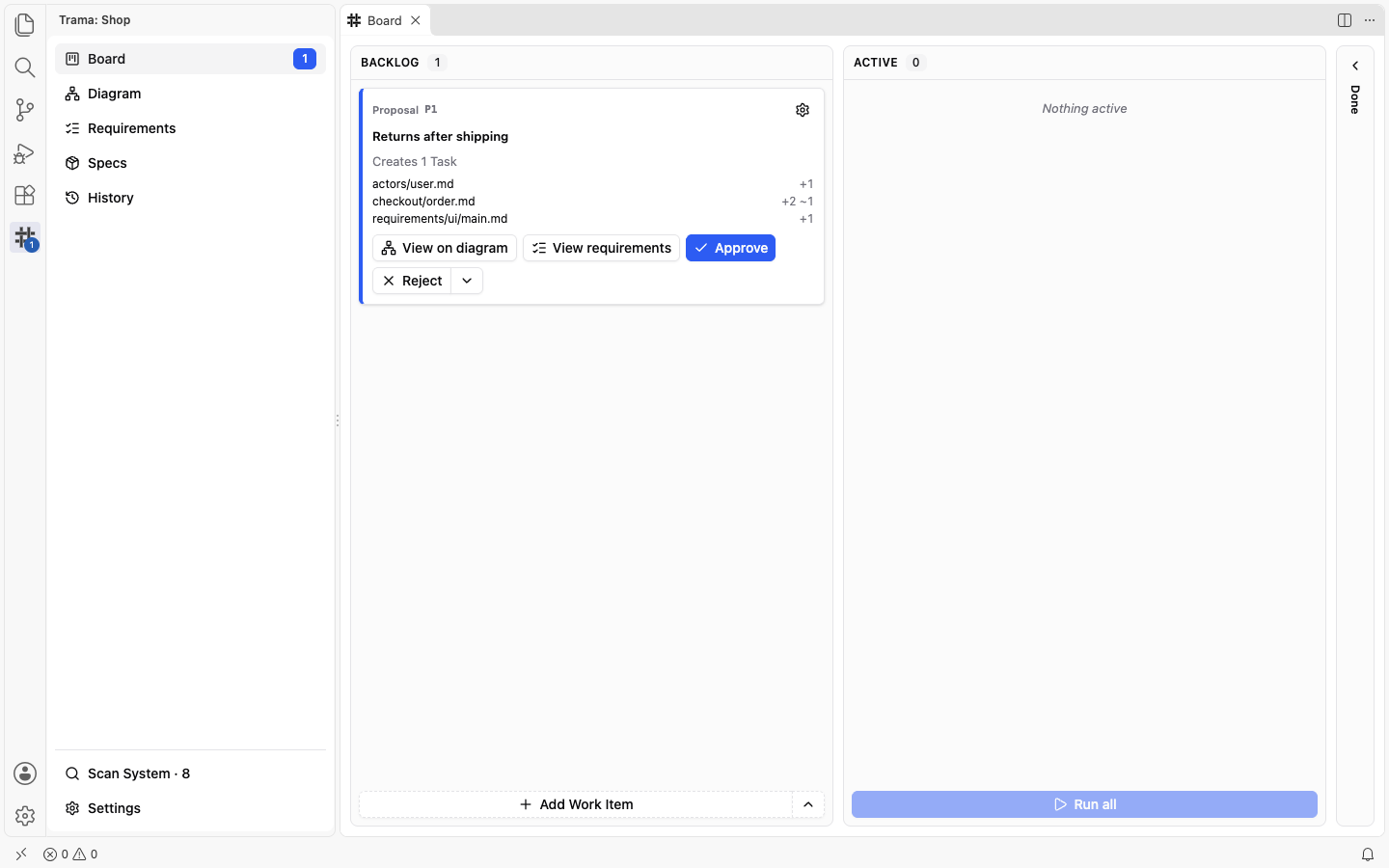

The Board with an open Proposal card in the Backlog, with the files it adds and the buttons View on diagram, View requirements, Approve and Reject, as each import Proposal looks.

Read each Proposal as any other (see Review, approve or reject a Proposal) and open its ## Doubts. Approve those that are right, and Rework with feedback… those that miss the point. Approving an import Proposal changes the Model files only; the code is not touched.

After the import

The Diagram now draws the System. Design the next change from the Board: Design a change. A scan compares the new Model with the code whenever you want to know where they differ.
